Seal Design Considerations for High-Temperature Hydraulic Applications

Effective seal design for high-temperature hydraulic systems requires a deep understanding of thermal dynamics, pressure conditions, and fluid behavior. A poorly designed seal can lead to premature failure, system inefficiency, and costly maintenance. As such, engineers must carefully address each aspect of seal geometry, material selection, and operating parameters.

First, the seal's lip geometry plays a vital role. In high-temperature environments, the material must maintain proper contact with the moving or static surface despite expansion or contraction. Designs such as V-rings or U-cups provide flexibility while ensuring tight sealing. The inclusion of a dust lip or a secondary lip enhances exclusion capabilities, especially in outdoor or contaminated environments.

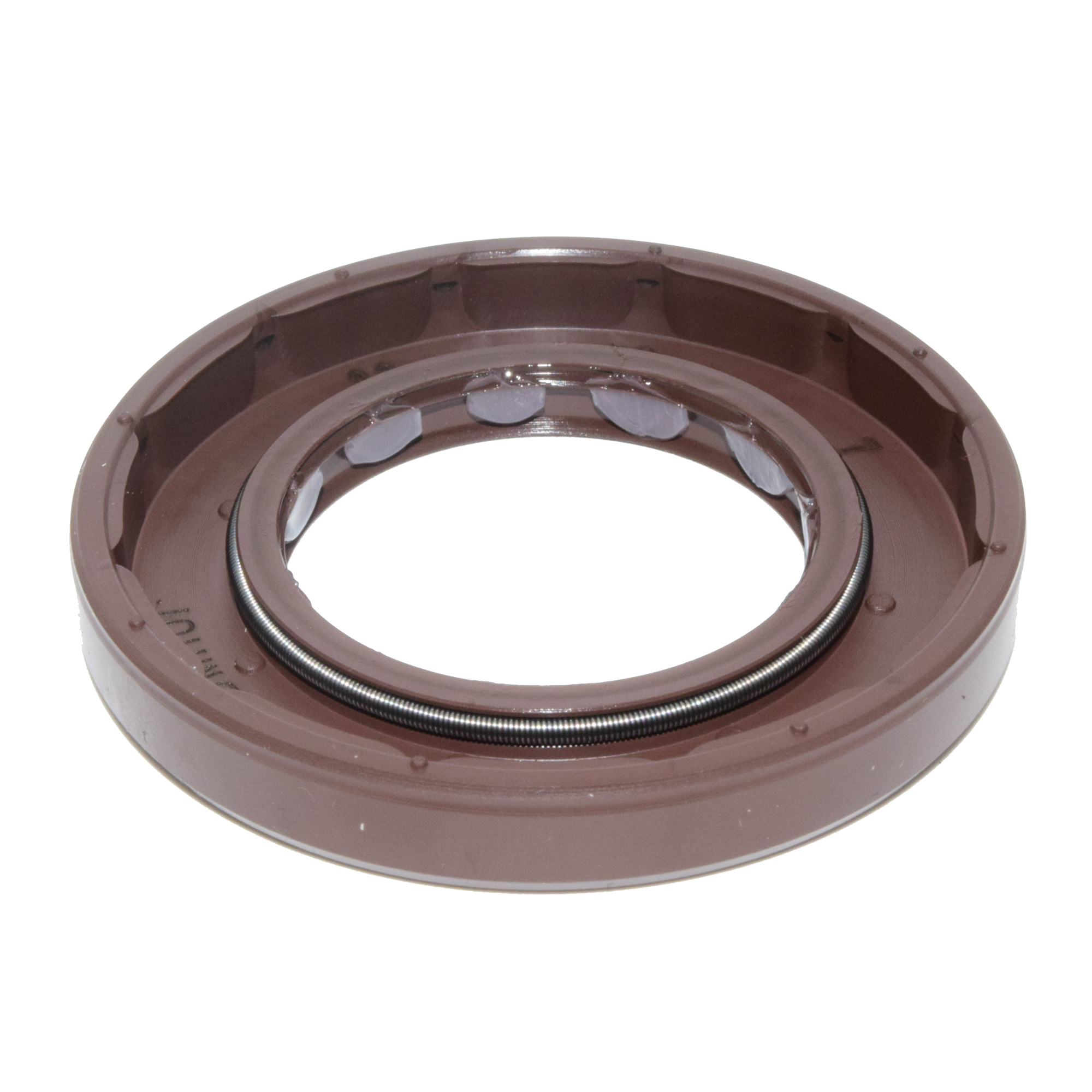

Thermal expansion can lead to dimensional changes that affect seal fit and performance. A well-designed seal must accommodate these variations without compromising pressure retention or increasing friction. Some seals use spring-energized lips or incorporate expansion grooves to manage these effects.

Backup rings are often used in high-pressure systems to prevent extrusion. They support the sealing material and maintain shape under combined heat and pressure loads. The seal housing should also be designed to tolerate material deformation without causing stress concentration or leaks.

Material compatibility is essential. The selected elastomer or polymer must resist degradation from hydraulic fluids and elevated temperatures. FKM, PTFE, and HNBR are among the most commonly used materials, offering excellent chemical and thermal stability.

Seal surface finish and shaft tolerances are other important considerations. Surfaces must be smooth enough to prevent premature wear but rough enough to retain lubrication. Optimal finish prevents heat buildup and promotes long-term sealing performance.

Finally, environmental conditions such as exposure to dirt, moisture, and UV must also be factored in. Seal designs for mobile hydraulic equipment may need additional protective features or coatings to ensure longevity and reliability in harsh operating conditions.
